4840U

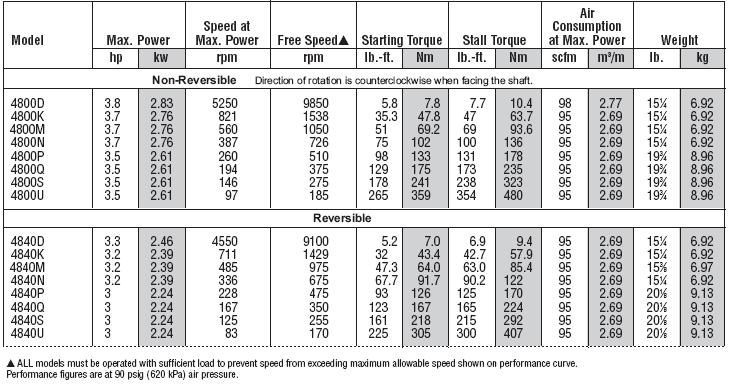

4800 and 4840 Series, In-Line planetary gear, Multi-vane Air Motors. 3.00 hp to 3.80 hp (2.24 to 2.83 Kw). 83 rpm to 9850 rpm with adjustability through air controls.

Features

■Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
■Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
■Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
■Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
■Compact and Portable: Get maximum horsepower in minimum size.
■Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
■Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
■No shock starts: Air cushioned start-up cuts stress to your equipment.
■Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide “special” non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
■Six hole face mount standard
■Optional 1” npt piped away exhaust option available
■Square drive option available
■Side inlet back head option available
